Imagen XR-2000
The XR-2000 video measurement system measures dimensions
of the image of an object displayed on a video monitor. Video measurement
is an ideal way to measure objects that are too small or too irregular in
shape to be measure using conventional tools. It is an excellent way to measure
any object when repeatability, speed and cost effectiveness are important.
A system normally consists of an XR video measurement system, a video camera,
a monitor. Applications abound research, quality control, and processing
in almost every discipline and industry.
Features:
- Graphics control: Mouse and menu with Pixilator
- Graphics Drag: Drag functions simplifies placement of measurement
graphics

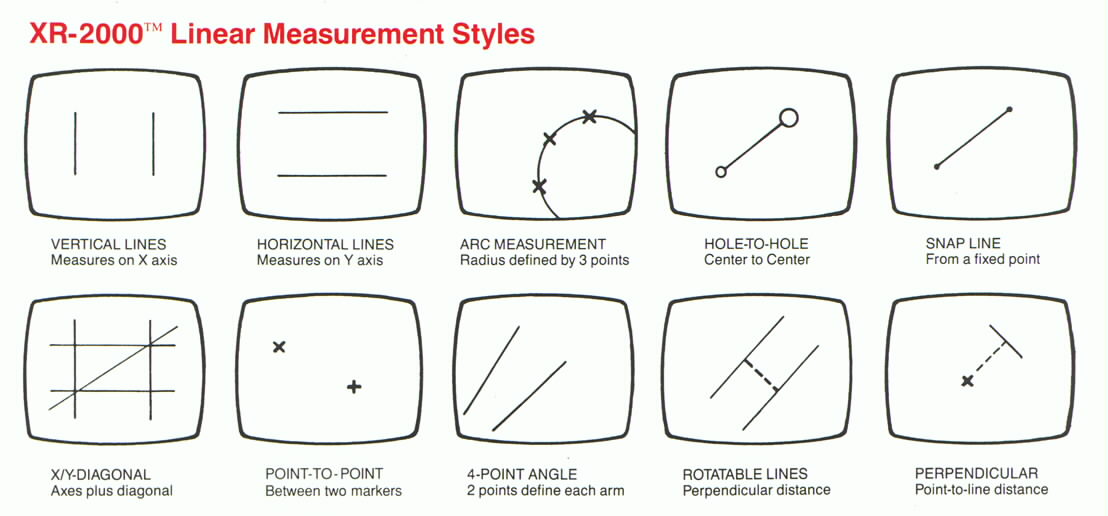

- Linear measurement: 9 styles
- Angle measurements: 3-point and 4-point
- Circular Measurements: Radius of 3 point arc and sizable circle
- Areas: Calibrated units or as % of reference area
- Pathlength: Arbitrary path in calibrated units
- Calibrated Grid: Sizable, positioned anywhere
- Calibrated Target: Sizable, positioned anywhere
- Labeling: Four labels up to 50 characters; 6 sizes, black or white
on black, white/black on clear background. Place anywhere; store in memory
- Markers: 32 different types
- Crossline: May be centered anywhere on screen
- Line styles: Black, white, dot and dashed
- Ruler: Calibrated ruler may be displayed anywhere
- Counter: Mark and tally objects
- Stopwatch: Can be placed anywhere on screen
- Calculator: Pocket calculator can be displayed and used
- Freehand drawing: Draw freehand graphics on screen.
- Calibration: Ten stored in memory; can select from measurement menu
- Password protection: password protection available for calibration
settings
- help menu: detailed online help
- Data Download: Download of measurement data to a printer or a computer
and supporting MS-DOS software.
Models and Inputs/Outputs
