Capra Products: Compound Microscopes

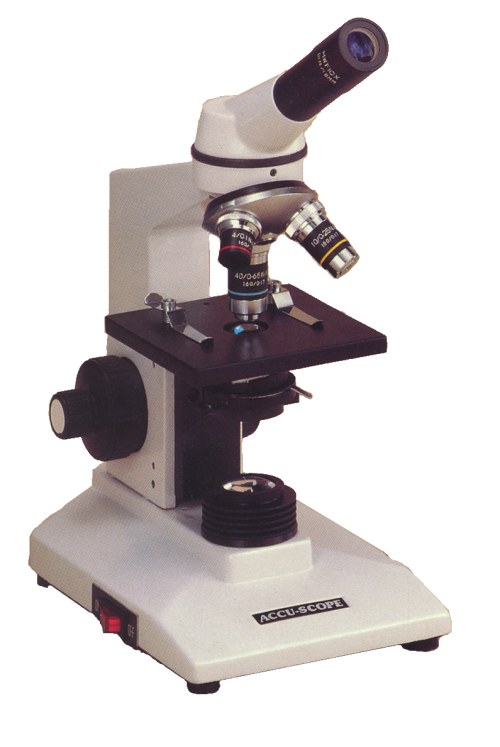

Inclined Monocular Microscopes 3070, 3071, 3079

Designed to meet the basic requirements of routine work at an economical cost. Sturdy, long lasting, and precision built with many professional advanced features. Highest quality coated optics will give a precise image. Inclined eyetube with internal optical prism system, fully rotatable, gives maximum convenience in use.

Features:

Body: Standard size, strongly built with 360^o revolving eyetube inclined 30^o, which remains at constant height.
Nosepiece: Dustproof triple revolving with positive click stops.
Stage: 110 x 115 mm with clips, drilled and tapped for mechanical stage.
Special Features: Eyepiece with pointer locked-in. Fully coated DIN standard optics give full size image. Coaxial fine and coarse adjustment controls, set in low position for comfortable use, moves stage up and down for precise focusing. Extended base to prevent accidental damage to objectives.
Illumination: Built-in base 120 Volt 20 Watt on-off switch.
Built in slip clutch system and preset focus stop prevents damage to slides and objectives.
Substage: Equipped with two lens Abbe condenser N.A. 1.25 with iris diaphragm in spiral focusing mount and filter holder.
Finish: Lustrous oyster white, acid and scratch resistant.

For more information, call Capra at (508) 650-9700.

Click here for Digital Cameras to Couple with Microscope: | Digital Imaging |

CAT #	MODEL	EYEPIECE	OBJECTIVES
3070	Accu-Scope Monocular Microscope	Widefield 10x (18mm) with pointer, locked-in.	Achromatic parfocal color coded (4x, 10x, 40x)
3070T	Same as 3070 but with teaching head
3071	Accu-Scope Monocular Microscope	Widefield 10x (18mm) with pointer, locked-in.	Achromatic parfocal color coded (10x, 40x, 100x)
3070T	Same as 3071 but with teaching head
3079	Accu-Scope Monocular Microscope	Widefield 10x (18mm) with pointer, locked-in.	Achromatic parfocal color coded (4x, 10x, 100x)
3079T	Same as 3079 but with teaching head
