Elmo
CCD Color Video Camera TSN400A

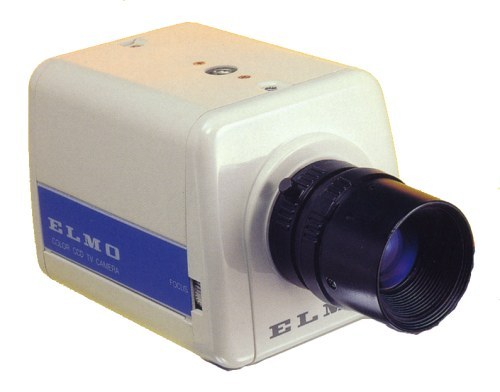

 Click to Enlarge    A high performance CCD Color Camera from ELMO featuring high resolution, compact size, backlight compensation, and the ever popular square auto iris connector for ease of installation.

Features:

For more information, call Capra at (508) 650-9700.

Click here for diagram: | TSN400 Series |

  TSN400A
Pickup device 1/3" Color Interline transfer CCD
No. of effective pixels 768 (H) x 494 (V)
Sensing area 4.88 (H) x 3.66mm (V)
Scanning system 2:1 interlaced

Sync system Line-lock
Resolution 470 TVL (H) x 350 TVL (V)
S/N ratio More than 48dB
Minimum illumination 2.2 lx (F1.2 under incandescent lamp, w/Sens-up ON)
AGC Built-in +8dB
White balance Auto / Manual
Backlight compensation Provided
AES (Automatic Electronic Shutter) Provided
Electronic Shutter 1/60s, 1/125s, 1/250s, 1/500s, 1/1,000s,  1/2,000s, 1/4,000s, 1/10,000s
Output signal VBL 1.0Vp-p 75 ohms, NTSC compatible
Lens mount CS
Power source AC24V +/- 10%
60Hz +/- 0.5Hz
Weight 300g (0.66lbs)
