Video Monitor CMS-13RGB
The CMS-13RGB is a high quality, multiple input, 13 inch audio video
monitor designed for table top or rack mount operation (optional rack mount
kit available). The CMS-13RGB features include a high horizontal resolution
of 750TV lines and the use of SMPTE-C phosphors to produce excellent image
quality in a professional monitor. New levels of performance are achieved
through the use of a fine pitch incline gun CRT to produce crisp images
with high detail. A CPU controlled Beam Current Feedback circuit is used
to accurately and consistently monitor each of the CRT guns to assure stable
color reproduction. An On-screen menu system is provided for setup parameters.
Once set, the parameters are stored.
For more information, call Capra at (508) 650-9700.
High Quality CRT
Switchable Aspect ratio
Beam current feedback system
Multiple Input Selection
Multiple Standard Compatibility

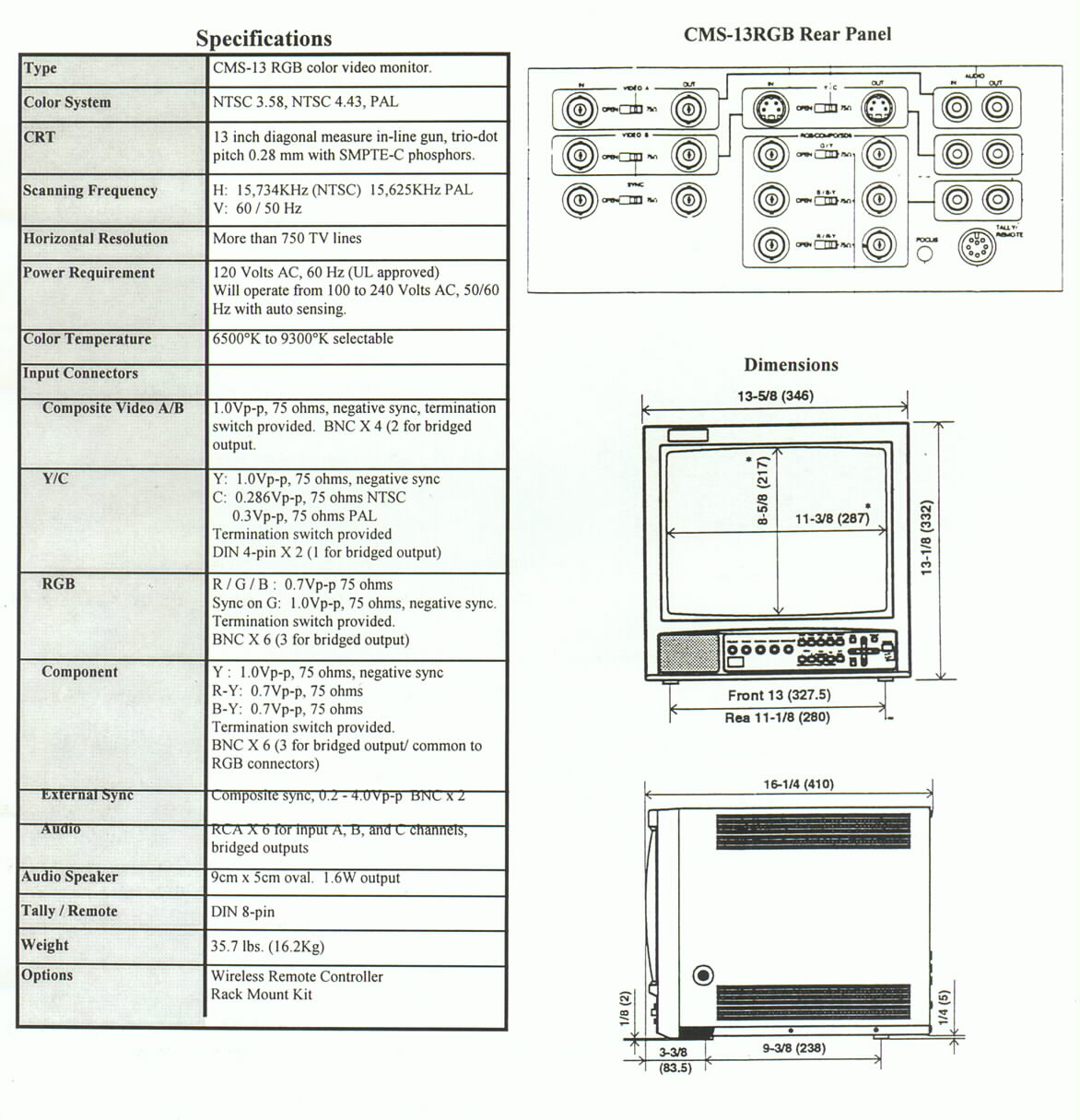

Click here for diagram, rear panel view and Specifications chart: |
Telephone: (508) 650-9700
