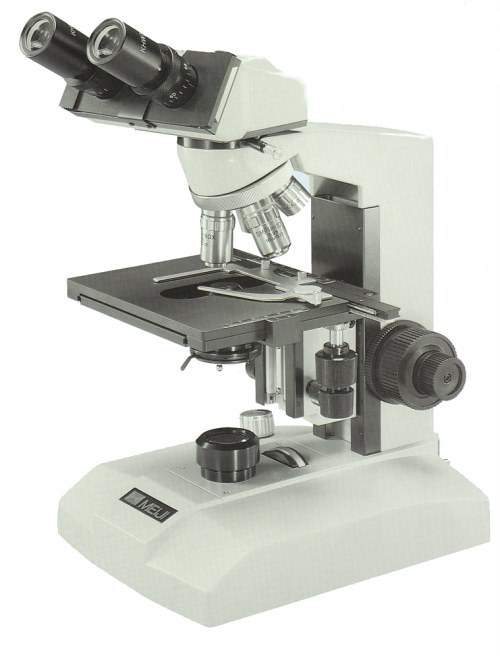

An important newcomer to the Meiji range of microscopes.... The ML5000
Biological series microscopes all feature smooth operating quintuple reverse
angle nosepieces for easy access to the specimen and stage. The ML5000
Biological Series microscopes all carry a solid precise "Flat-Top" type
mechanical stage. The ML5000 Biological Series microscopes offer a choice
of Koehler illumination, 6V 30W halogen or 12V 50W halogen. Light intensity
control with LED indicator is standard on all models.
Features:
Bodies:
The ML5000 Series Biological Microscope is equipped with either a binocular
or trinocular viewing head inclined at 30o and rotatable through
360o for comfortable viewing. Each eyetube is provided with
a graduated diopter adjustment. Interpupillary distance is adjustable between
52mm and 72mm.
Three types of objectives are available. S. Flat achromats, SM Planachromats,
and Planachromats.
Stage:
The 171mm x 140mm rectangular flat-top mechanical stage with 78mm x
52mm movement is graduated with vernier reading to 0.1mm. Low level coaxial
controls and detachable specimen guide are offered as standard.
Condenser:
An achromatic N.A.1.25 substage condenser with iris diaphragm and filter
tray is standard equipment.
Illuminator:
A built-in Koehler illuminator with field iris covers all aperture
and field filing requirements from 4x to 100x objectives. A 6V 30W halogen
lamp with an intensity control is provided as standard equipment. Select
models offer a 12V 50W halogen external light source.
Weight:
Approximately 6.4kg. (binocular model) and 6.5kg (trinocular model)
Click here for Digital Cameras to Couple with
Microscope: | Digital Imaging |
For more information, call Capra at (508) 650-9700.
