Paired DIN KHW 10x super wide 20mm field of view eyepieces.
Viewing Head:

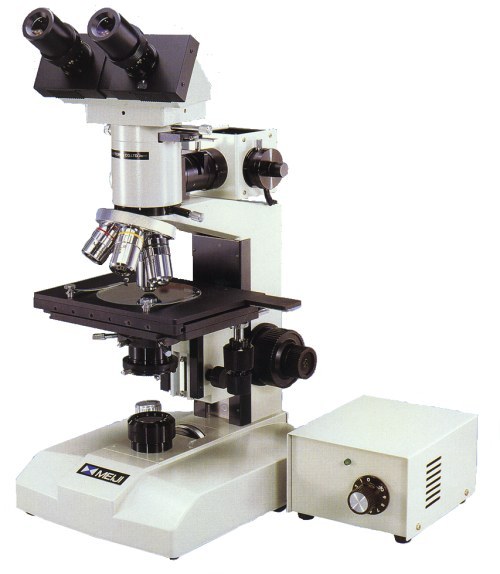

The ML8000 Series Metallurgical Microscope is equipped with either
an erect image binocular or regular trinocular viewing head inclined at
30o and rotatable through 360o for comfortable viewing.
Each eyetube is provided with a graduated diopter adjustment. Interpupillary
distance is adjustable between 52mm and 72mm.
Infinity corrected, S. Planachromat M4x/0.10, M10x/0.25, M20x/0.40,
M40x/0.65
Stage:
Large scan 4" x 4" ball-bearing mechanical stage with 94.5mm diameter
clear glass stage plate, with drop-down coaxial axis controls with X/Y
movement.
Condenser:
Rack and pinion focusable substage condenser with iris diaphragm and
filter tray including clear blue filter.
Focusing Movement:
Coaxial Low positioned coarse and fine focus controls, graduated to
2 microns per division, are fitted with tension adjustment and safety autostop.
The focus range is 35mm. The movement runs in extra wide precision ball
bearing tracks.
Illuminators:
Vertical full Koehler Illuminator with 6V 30W Halogen lamp for brightfield
and polarization technique, with infinity lens. Electronic transformer
with intensity control is supplied in a separate case. Blue clear, green
clear, ND8 Neutral Density and polarizing filters supplied in mounts. Transmitted
Koehler illuminator with 6V 30W halogen lamp with electronic transformer,
and intensity control is built into the microscope base.
