Finescope FS-60 Series

Click to Enlarge    The FS-60 is a microscope unit made for brightfield inspection. It is ideal for observing very minute sections, and especially suitable for the Prober and Failure Analysis Manufacturing applications. High magnification, long working distance, fiber optic cold light illumination ensures easy and accurate operation.

    The FS-60FD offers the option for use of Mitutoyo's darkfield lenses. A special nosepiece is provided to accommodate these objectives.

    The FS-60YC is designed for a YAG cutting laser. An infrared radiation compensation system is built into the FS-60YC optics. Note: 1x fixed magnification safety filter for laser.

    The plan achromatic FS-ULWD series objectives have the world's longest working distance and an infinite tube system. These lenses provide flexible observations at high magnifications and independent correction of lateral chromatic aberration.

    The field of view is extra wide and erect. The fiber optic cold light illumination keeps the system free from thermal expansion caused by illumination heat. A color video system and photography unit are also available for this unit.

For more information, call Capra at (508) 650-9700.

Click here for Digital Cameras to Couple with Microscope: | Digital Imaging |

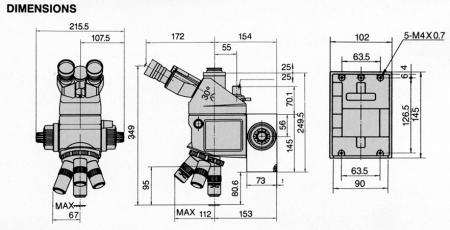

Click here for Diagrams: | Finescope FS-60 |

  Finescope FS-60 series
Focus adjustment Concentric coarse and fine controls
Coarse adjustment - 2.1mm/rot
Fine adjustment- 0.1mm/rot
Focusing 50mm
Erecting trinocular tube Pupil distance adjustment:
Siedentopf type
Adjustment range: 51-76mm
Fixed optical path: 50 (observing), 50 (photographing)
Tube magnification 1x to 2x changeable by zooming on FS-60FC/FD
Illumination Reflected illumination unit Koehler illumination, adopted optical system for the fiber illumination unit, built in diaphragm aperture.
Revolving nosepiece 4 lens mounts or optional 5 lens mounts
Objectives Infinite tube system, lateral chromatic aberration free
Stain-free, plan apochromat
Parfocal distance 95mm
Eyepiece Chromatic aberration free
High eye point with rubber eye cup
Diopter adjustment: -8D to +5D
Magnification - field of view
    10x - 24mm
    15x - 16mm
    20x - 12mm
Optional accessories Adapter (B) for video system / photography unit
Polarization unit
Reticle
Photographic Systems CB33 and 35mm
