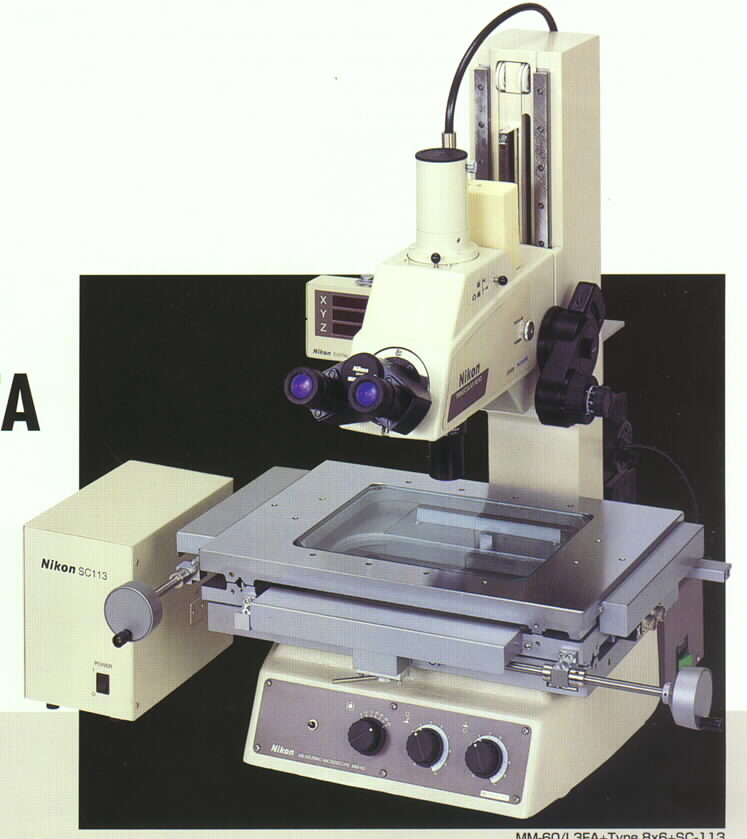

The MM 40 (shown on the left is) can be customized to your specific needs. Click on the System chart below to enlarge. The MM 60 (shown on the right is) can be customized to your specific needs. Click on the System chart below to enlarge.

Objectives

    These compact objectives feature long working distances, excellent resolution, and all of them have almost the same parfocal distances. Can be used with the MM-40, -60 and 100B. The 3x objectives comes standard with the microscope.








Magnification 1 x  3 x  5 x  10 x  20 x  50 x  100 x
Working distance (mm) 79 75 64 49 20 15 4

Protractor Eye Piece


1 Minute Reading Eyepiece
The viewfield includes crosshairs and 60° lines, and angle indexes are read by appropriate microscopes. The measuring range is 360°.		 10-Minute Reading Eyepiece
The viewfields includes crosshairs and angle indexes, and when the knurled ring at the lower section of the eyepiece tube is turned, the crosshairs and the vernier both rotate up to 180º.




Fiber-Optics Bifurcated Ring Illuminator

    Since a 15V/150W halogen lamp with reflective mirror is used, a bright light source is obtained and the brightness is adjustable. This Illuminator produces cone-shaped illumination, minimizing shadows caused by any unevenness on the workpiece surface. The bifurcated fiber enables flexible illumination from two directions.







Fluorescent Lamp Illuminator

    The ring fluorescent tuve provides smooth, uniform illumination without shadows over the entire field. Because a 300V/30mA cold-cathode fluorescent tube is used, illumination starts immediately after the switch is turned on. The fluorescent tube is also easy to replace.
