Optical Comparator 3500/3550 Series
The New/Redesigned "3500/3550" Series 14" Comparators feature a more rigid
stage with greater measuring range and accuracy. Over 50 years of experience
manufacturing in the U.S., combined with its nation wide factory service
organization makes S-T Optical Comparators your best buy in the industry.
-
State of the art electronics. Choice of 4 readout systems, all DRO's have
RS232C output and available with complete geometric functions and automatic
edge sensing.
-
Ultra bright, sharp image with wide choice of magnification lenses.
-
Duplex fiber optic surface illumination, standard.
-
Rotating glass screen with electronic digital readout protractor on "3550"
series models, 5 min. vernier on "3500" series models.
-
Rugged nickel plated stage, 4" x 7" travel, 50 lb. load capacity. Readings
via 0.0001"/0.002mm precision glass scales.
For more information, call Capra at (508) 650-9700.

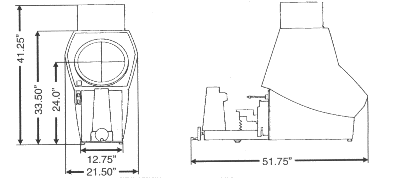

Click here for diagrams: | 3500 Series
|
