Sony

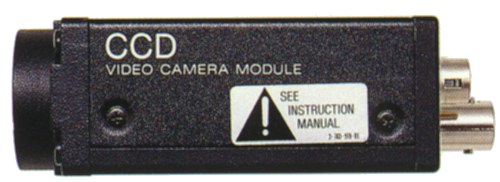

CCD Video Camera Module XC-75 / 75ce

 Click to Enlarge
Features: For more information, call Capra at (508) 650-9700.

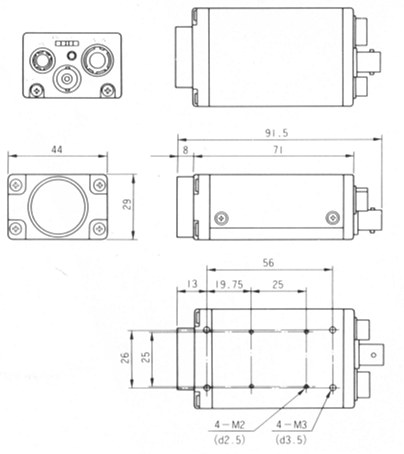

Click here for diagram: | XC-75 |

  Sony XC-75 Sony XC-75ce
Pick up device 1/2" Interline transfer Hyper HAD 1/2" Interline transfer Hyper HAD
Picture elements 768 (H) x 494 (V) 752 (H) x 582 (V)
Cell size 8.4(H) x 9.8(V) um 8.6(H) x 8.3(V) um
Lens mount C mount C mount
Sync system Internal / external (auto) Internal / external (auto)
H/V resolution 570/485 TV lines  560/575 (TV)
Sensitivity 400lux F4 (3200oK) 400lux F4 (3200oK)
Minimum sensitivity 3lux F1.4 (with IR cut filter) 3lux F1.4 (with IR cut filter)
S/N ratio 56dB 54dB
Power requirements DC12V +/-10% DC12V +/-10%
Weight 140g 140g
