Split Screen Generator DASS-H

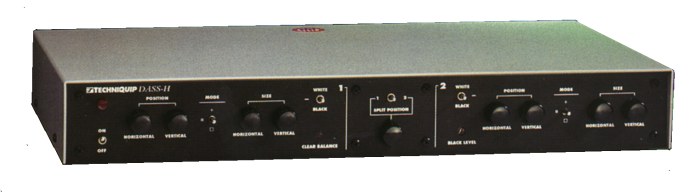

TechniQuip's model DASS-H Split Screen Generator provides an economical
alternative to other costly inspection systems. The DASS-H is a split-screen
video switcher with an independent, positionable single/double X-Y cross
hair or size adjustable box reticle generator for each video input. The
inputs are displayed side-by-side (split screen), though either input can
be selected for full screen display. The DASS-H is compatible with monochrome
or color video.
Features:
-
Left/Right Video Screen Splitter
-
Adjustable Cross hair and Box Reticle Generator for each input
-
Self-Contained Power Supply (+12VDC) for each input.
-
Optional single "Umbilical" cable for each camera supplies power, video
signal, and sync.
-
120VAC Convenience Outlet (Unswitched)
For more information, call Capra at (508) 650-9700.
Telephone: (508) 650-9700
