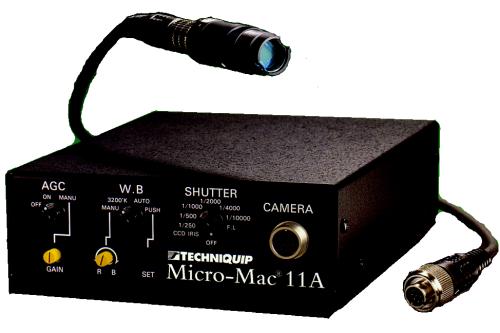

The Micro-Mac 11A is a remote 1/2" head color CCD video camera. The 17mm
camera head can be used with our eye-piece or "C" mount adapter. The camera
is controlled remotely by the camera control unit. The Micro-Mac 11A is
ideal for remote camera locations. Excellent color renditions can be easily
obtained because the Micro-Mac 11A has 4 white balance settings (3200oK,
Auto, Manual, or One-Push Auto) allowing the user to set it accordingly
to their needs.
| Micro-Mac 11A | |
| Pick Up Device | Interline Transfer Hyper 1/2" CCD |
| Picture element | 752 (H) x 582 (V) |
| Sync Systems | Internal Sync Only |
| Scanning Area | 6.5mm (H) x 4.8mm (V) |
| Scanning System | 525 Lines / 60 Hz, 2:1 Interlace NTSC
625 Lines / 50 Hz, 2:1 Interlace PAL |
| Horizontal Resolution | 450 TV lines |
| Scanning Frequency (H) / (V) | 15.734KHz / 59.94Hz |
| S/N Ratio | Greater then 48dB (AGC off) |
| Electronic Shutter | 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec. |
| White balance | Auto/3200oK/Manual/One push auto |
| Video Output | NTSC, and Y/C |
| Gain Control | Auto / Manual |
| Camera Lens (optional) | C Mount, 30mm Eye Tube Adapter (Standard), 23mm Eye Tube (optional) |
| Power Requirements | 12VDC +/-10% |
| Weight | Camera head 0.033 lbs, 15 grm. |
