Micro-Mac 8 T-Q/MM-8 SG High Resolution Monochrome EIA Video Camera

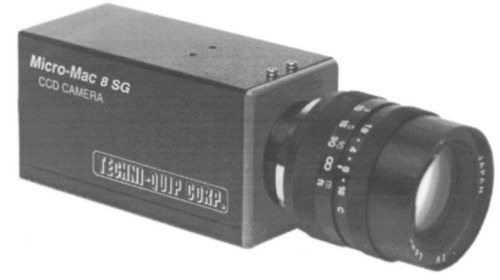

 Click to Enlarge    The model T-Q/MM-8 SG black & white CCD video camera offers high performance in a very small package. Low light sensitivity provides -6dB video output @ 0.01 lux. An array of 412,000 pixels (811-H x 508-V) delivers crisp images at a resolution measuring >600 horizontal TV lines. The T-Q/MM-8 SG has an 8-speed electronic shutter (1/60th ~1/10,000th second). Gamma (0.25, 0.45, 1.0), AGC (or manual gain), video and power are remoted via a single mini din connector. Ideal for microscopy, image processing and other OEM video applications.

Features: For more information, call Capra at (508) 650-9700.

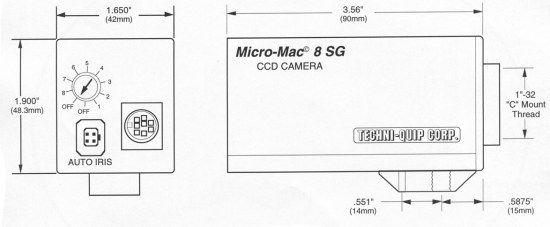

Click here for diagram: | T-Q/MM-8 SG |


  T-Q/MM-8 SG
Image Device 1/2" Interline Transfer CCD
Image Area 7.95mm x 6.45mm
(equivalent to 1/2" camera tube)
Picture Elements 811 (H) x 508 (V)
Horizontal Frequency 15.734KHz
Vertical Frequency 59.94Hz
Scanning System 525 lines, 60 fields / second
Minimum Illumination 0.2 LUX for -6dB output (full video); 0.01 LUZ for acceptable video
S/N Ratio Greater then 48dB
Horizontal Resolution 600 TV lines
Video Output Composite 1.0Vp-p @ 75 Ohms
