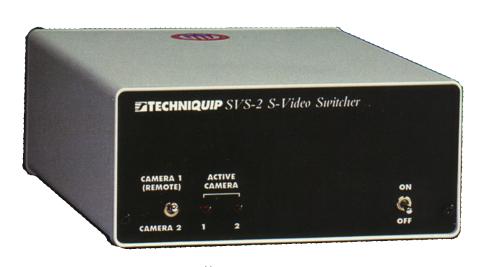

Video Switcher SVS-2
TechniQuip's model SVS-2 Video Switcher provides an economical alternative
to other costly inspection systems. The SVS-2 is a low cost two input video
switching device for Y/C (S-Video) or composite NTSC, PAL, EIT, CCIR systems.
Input selection is controlled with a front panel mounted toggle switch,
or remotely through a supplied hand held push-button or a TTL compatible
signal on a rear panel modular connector. LEDS indicate the active input
in either mode of operation. The SVS-2 contains a built-in power supply
for 110V operation and comes packaged in a standard mini-box for easy stacking
when used with other TechniQuip electronic devices.
For more information, call Capra at (508) 650-9700.
Self contained power supply 110VVAC (220V available)
Unity gain for non-insertion loss.
Fast 25NS switching time.
Wide 90MHZ bandwidth.
S-Video or Composite.
Remote push-button with 8' cable.
